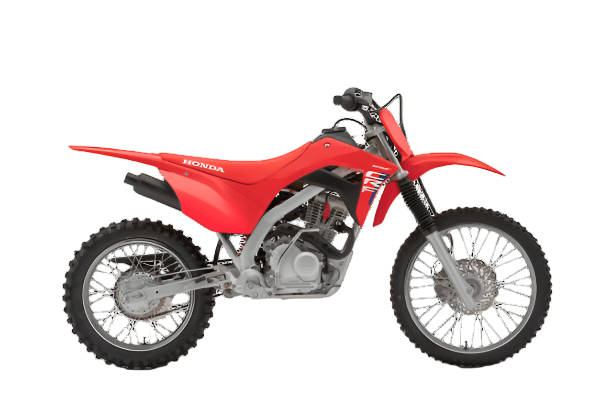

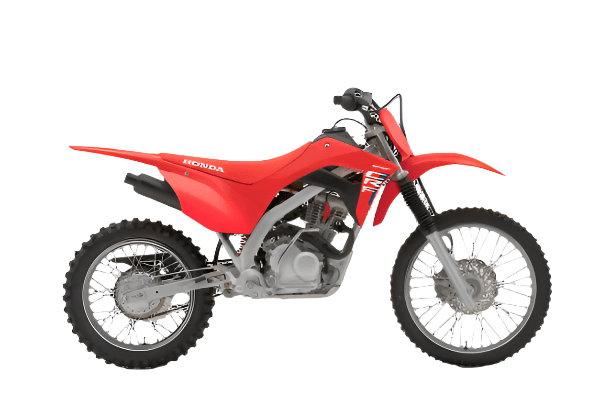

HONDA CRF125F

Inverted 31mm telescopic front forks deliver confidence-inspiring performance with 13.2cm / 16.8cm (‘Big Wheel’) of travel and are paired with a Pro-link swingarm and a single shock for consistent, high quality performance. The 17in / 19in (‘Big Wheel’) front wheel aids tractability and handling, and the 14in / 16in (‘Big Wheel’) rear provides strong drive and agility.

SPECIFICATIONS:

🔧 Engine & Performance

Type: Air-cooled, two-valve, four-stroke SOHC 25º single-cylinder

Displacement: 124.9cc

Bore x Stroke: 52.4 mm x 57.9 mm

Compression Ratio: 9.0:1

Fuel System: Fuel Injection

Starter: Electric and kickstart

Clutch Type: Wet, multi-plate

Transmission: 4-speed manual

Final Drive: Chain (13T/49T)

🛞 Chassis & Suspension

Frame Type: Steel

Front Suspension: Inverted telescopic fork, 168 mm travel

Rear Suspension: Single shock, 168 mm travel

Front Brake: Hydraulic disc, 220 mm

Rear Brake: Drum

Front Wheel: Aluminium spoke, 19"

Rear Wheel: Aluminium spoke, 16"

Front Tyre: 70/100-19 (with tube)

Rear Tyre: 90/100-16 (with tube)

📏 Dimensions & Weights

Claimed Kerb Weight: 90.27 kg

Overall Length: 1,857 mm

Width: 769 mm

Height: 1,069 mm

Seat Height: 785 mm

Wheelbase: 1,255 mm

Ground Clearance: 267 mm

Caster Angle: 27°30′

Trail: 94 mm

Fuel Tank Capacity: 4.5 L (including reserve)

Notes: All specifications are provisional and subject to change without notice. Figures reflect WMTC testing standards; real-world performance may vary depending on conditions.
